Perforated Metals with Round Holes - Up to 36" Wide - Diagonal Pattern 45°

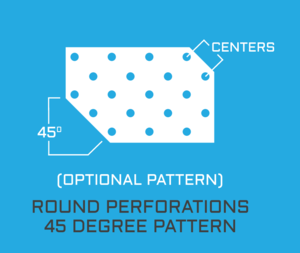

Perforated Metals With Round Holes Up To 36 Inches Wide - Diagonal Pattern

The following are examples examples of Stock Perforating Dies available for Standard Jobs of perforating round holes in a 45° diagonal pattern. These dies perforate brass, copper, zinc, steel, plastics, aluminum, hard board, monel metal, type 430 stainless, tin plate, galvanized, aluminized steel, specializing in 16 ga. & lighter. Perforation patterns for Stainless Steel are available down to 1/8" diameter hole in 22ga maximum thickness.

  • Sizes from 1/16" to 5/32" diameter holes.
  • 12.5 to 50 holes per square inch
  • 15.2% -22% open area
Hole Size Fraction
Hole Size Decimal
Centers or Feed
% Area Open
1/16 in
0.063 in
1/4" diagonal 45º
5.5 %
5/64 in
0.078 in
0.177 diagonal 45º
15.2 %
5/64 in
0.078 in
0.250 diagonal 45º
8.6 %
3/32 in
0.0937 in
0.243 diagonal 45º
12.4 %
3/32 in
0.0937 in
0.486 diagonal 45º
3.1 %
1/8 in
0.125 in
0.250 diagonal 45º
22 %
5/32 in
0.156 in
200 diagonal 45º
48 %
