Perforated Metal with Square Holes

The following are examples of Stock Perforating Dies available for Standard Jobs of perforating square holes. These dies perforate brass, copper, zinc, steel, plastics, aluminum, hard board, monel metal, type 430 stainless, tin plate, galvanized, aluminized steel, specializing in 16 ga. & lighter. Perforation patterns for Stainless Steel are available down to 1/8" diameter hole in 22ga maximum thickness.

Perforated Metals with Square Holes - Up to 36" Wide - Staggered Pattern

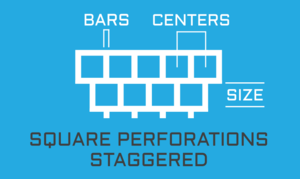

Perforated Metals with Square Holes Up to 36 inches Wide - Staggered Pattern

The following are examples of Stock Perforating Dies available for Standard Jobs of perforating square holes in a staggered pattern. These dies perforate brass, copper, zinc, steel, plastics, aluminum, hard board, monel metal, type 430 stainless, tin plate, galvanized, aluminized steel, specializing in 16 ga. & lighter. Perforation patterns for Stainless Steel are available down to 1/8" diameter hole in 22ga maximum thickness.

Square Size
Centers or Feed
.156"
1/8" sq.

Perforated Metal with Square Holes - Tooling up to 36" Wide - Straight Pattern

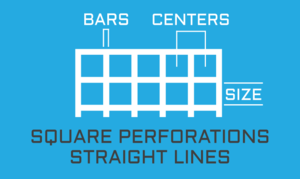

Perforated Metals With Square Holes Up To 36 Inches Wide Straight Pattern Illustrated

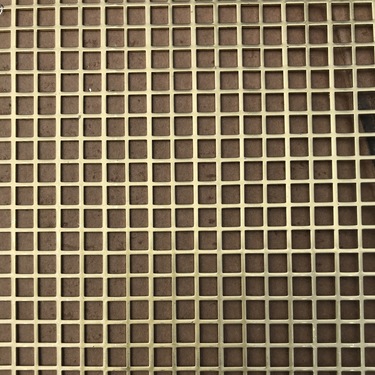

Perforated Metals With Square Holes Up To 36 Inches Wide Straight Pattern

The following are of Stock Perforating Dies available for Standard Jobs of perforating square holes in a straight line pattern. These dies perforate brass, copper, zinc, steel, plastics, aluminum, hard board, monel metal, type 430 stainless, tin plate, galvanized, aluminized steel, specializing in 16 ga. & lighter. Perforation patterns for Stainless Steel are available down to 1/8" diameter hole in 22ga maximum thickness.

Square Size
Centers or Feed
1/2"
3/8" sq.
